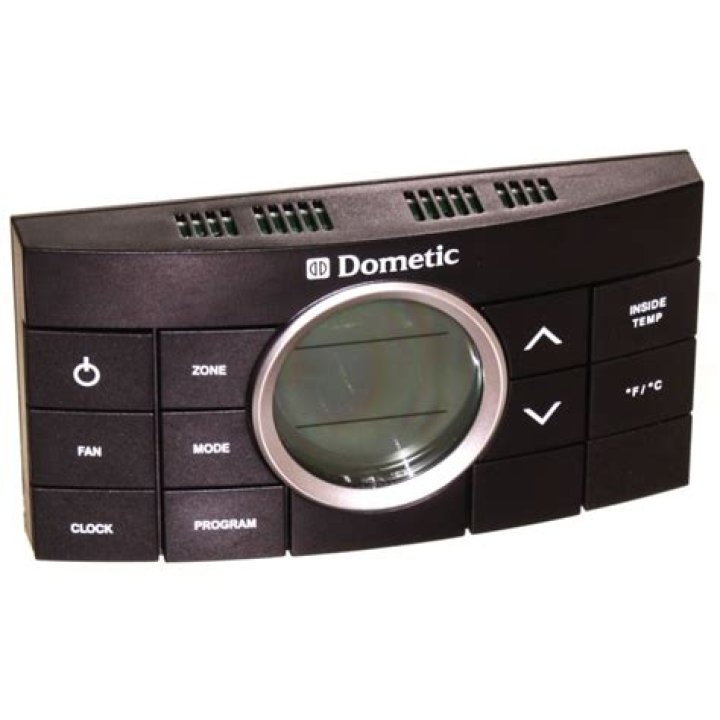

Is there a Dometic Comfort Control Center 2 thermostat?

Your Dometic Comfort Control Center 2 thermostat (hereinafter referred to as the CCC 2 thermostat) has been designed for ease of opera- tion and for many years of reliable service. Dometic, LLC reserves the right to modify appearances and speci ﬁ cations without notice.

When do I get an error code on my Dometic thermostat?

When the system determines that one of the faults listed below has occurred an error code will be displayed in the LCD. Loss of communication between the CCC 2 thermostat and all system power module boards. System will shut down. Loss of communication between the CCC 2 thermostat and an individual system power module board.

How to reset the fan run time on a Dometic thermostat?

To reset the fan run time and clear the filter icon, hold the INSIDE and OUTSIDE but- tons for three seconds. This will clear the fan run time for the current zone selected. Dometic CCC 2 thermostat: Clean the CCC 2 thermostat with a moist soft cloth. DO NOT spray water directly on the CCC 2 thermostat.

What should I use to clean my Dometic CCC 2 thermostat?

Dometic CCC 2 thermostat: Clean the CCC 2 thermostat with a moist soft cloth. DO NOT spray water directly on the CCC 2 thermostat. DO NOT use solvents for cleaning. In the unlikely event the unit fails to operate or operates improperly, check the following before calling your service center.

How to troubleshoot a Dometic single zone thermostat?

Press the On/Off Mode button. (The LCD will be activated). Toggle through the modes until the On/Off green LED is on. Go out. Press the On/Off Mode button to go to the available modes. Press to advance to available mode. The green LED will indicate the mode selected either (Off, Fan, Cool, Furnace, Heat Pump or Heat Strip)

What does the error code E1 mean on the Dometic thermostat?

Error Code: E1 Results from a loss of communication between the Single Zone LCD thermostat and its module board. LCD will cycle between E1 and the previous mode setting. The system eventually shuts down. E2 Open circuit or out of range Indoor Temperature Sensor.

What does furnace mode do on a Dometic furnace?

In the FURNACE mode, the system cycles the furnace On and Off based on the room air temperature and the temperature. You can configure the system to operate using On/Off differential of 1 or 2 degree F.

What happens if you lose 120 VAC in a Dometic thermostat?

Loss of 120 VAC power to all power module boards on the system. The system will shut down. Invalid zone configuration. The heat pump and heat strip DIP switches are both set to the ON position in one zone. Heat pump, heat strip, air conditioner, and dehumidify operation will be locked out in the affected zone.

Why is my Dometic duo thermostat not working?

But such is not the case and here are some common Duo-Therm thermostat problems and their solutions: 1. The thermostat won’t stay on or turn on – the first place to look will be your on/off switch. If there is a crack in the solder making the connection, then no power will be sent to the switch.

What to do if your Dometic heater is not working?

1. Clearing communications issues: your unit can get into a situation where the thermostat is not communicating with one or both upper boards. Turn the thermostat off, and turn power to the AC units off and on. Then turn the thermostat on and see if it works better. 2. Reset the thermostat to factory specs.

How to troubleshoot a Dometic thermostat error cone?

Dometic 3313192 Thermostat Troubleshooting. Error cone. Solution. E1. Loss of communication between the Single Zone LCD thermostat and the module board. LCD will cycle between E1 and the previous mode setting. System will shut down. E2. Open circuit or out of range Indoor Temperature Sensor.

How to reset Dometic duo thermostat Comfort Control?

Duo-Therm Comfort Control Reset 1 Turn the device on and the light and annunciator data are there. If they are, move on to step 2 and if they aren’t, consult your manual section 5.1. 2 Press the mode button to activate the annunciator light. 3 Then, at the same time, press the up and down buttons and hold.

Why does my thermostat not match the temperature?

The AC or heater do not come on – you have been able to set the temperatures for either one but when those temperature levels arrive the appliances do not turn on. The AC or heater won’t turn off – once the temperature setting is reached the appliances continue to work. The setting on the thermostat does not match the temperature in the room.

How to know if your RV thermostat is bad?

If you do not have a manual for this comfort control system, just click here to get a downloadable copy. or go to the nearest Dometic dealer to see where you can get a hard copy. How do You Know if Your RV Thermostat is Bad? The average life of an RV thermostat is roughly 10 to 15 years.

What are the zones on a Dometic thermo Stat?

Zones are established at the time of the installation of your Dometic CCC 2 thermo- stat. Anyone know the wiring schematic for the Dometic CCC2 multi-zone kit into a Dometic AC unit? the 2 yellow wires on a CCC2 control board are for load shedding. only used .

Is the domitec Comfort Control Center 2 an OEM unit?

I have a Dometic Duo Therm Comfort Control 2 CCC2 that one Dometic Penguin II, and a Domitec comfort control center @ thermostat. This unit is designed for OEM installation.

How to set a CCC 2 thermostat to on?

The installer of your system will set the required system DIP switches to the ON position. In order for the CCC 2 thermostat to recognize the system zones, type of units installed and their options, a system reset must be done. 4 Once the system is completely installed, do a system reset: 1. Make sure the CCC 2 thermostat is in the OFF mode.

I have a Dometic Duo Therm Comfort Control 2 CCC2 that one Dometic Penguin II, and a Domitec comfort control center @ thermostat. This unit is designed for OEM installation.

What happens when the Dometic thermostat is locked out?

Shorted Indoor Temperature Sensor. All heat, cool, and dehumidify operation will be locked out. Manual fan operation will continue. Open circuit or out of range Outdoor Temperature Sensor (select models). Heat pump and dehumidification operation will be locked out. Air conditioner, furnace, heat strip and fan operation can continue to operate.

How to reset Comfort Control Center 2 thermostat?

In order for the CCC 2 thermostat to recognize the system zones, type of units installed and their options, a system reset must be done. Once the system is completely installed, do a system reset. • Make sure the CCC 2 thermostat is in the OFF condition. See page 3, Quick reference to control buttons.

How do you troubleshoot a thermostat?

How to troubleshoot a bad thermostat Step #1: Make sure thermostat is on the right setting Step #2: Turn the thermostat up or down 5 degrees Step #3: Replace the batteries (for electronic thermostats) Step #4: Clean the thermostat (for mechanical thermostats) Step #5: Check and test wires and wire connections

Why is my home thermostat not working?

There could be other reasons for a thermostat not working properly. For example, it may have been placed in the wrong spot on your home, such as near a draft or a window. It should never be located anywhere that cools or heats faster than the remainder of your house.

How do furnace thermostats work?

The thermostat sends a low-voltage electrical signal to a relay in the furnace, which signals a valve to open and deliver natural gas to the burners and for the blower to turn on. The furnace’s pilot light or electronic ignition lights the burner inside the combustion chamber.
